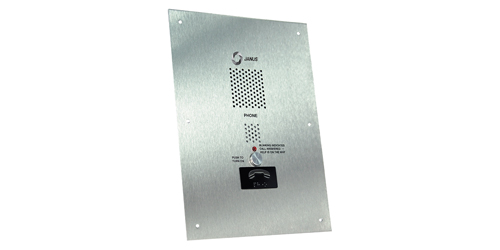

Flush Mount/Panel Mount EMS Elevator Phones

The PSL Elevator Phone is the best option for replacing a phone cabinet. When a flush mount unit is needed, this Stainless Steel ADA compliant phone is a perfect drop in installation. Made of 16 gauge Stainless Steel, with a #4 brush finish, these units are designed to be vandal resistant and stand up to harsh conditions.
PSL Phone
PSL Phone

Key Features:
  • ADA compliant
  • Phone line monitoring available
  • On board keypad
  • Optional on board relay
  • Mounts flush on the car panel
  • Built in four number dialer
  • Extended voice chip capability
  • Easy installation and programming
  • Fully programmable voice chip
  • Available in one or two LED version
  • FCC Registered
  • CSA Listed
  • Two year warranty
  • Positive acknowledgement of alarm received

  • Dimensions: 10" W x 13-1/4" H x 2-1/8" D
  • Weight: 4-1/2 lbs.
  • Frequency Response: 550Hz - 3400Hz, +/- 3db
  • Dialing: DTMF (Dual Tone Multi Frequency)
  • Ring Sensitivity: 40-120vac RMS
  • REN: 0.2B
  • Loop Current Range: 10mA to 60mA (20mA typical)
  • Optional AC adaptor: 12vdc@500mA
  • Operating Current Range: 25mA to 55mA
  • Power: Telephone line powered (48vdc to 50vdc typical)
  • Relative Humidity: Up to 95% (non-condensing)
  • Operating Temp: -40° to 185° F
  • Industry Canada No.: C22.2 No.60950-1-01, 2nd Ed
  • FCC Reg. No.: US: NLFTE05B25668
  • Mounting Type: Flush mount
