SHW-MR Machine Room Master Station

SHW-MR Machine Room Master Station

Call Directors & Intercoms

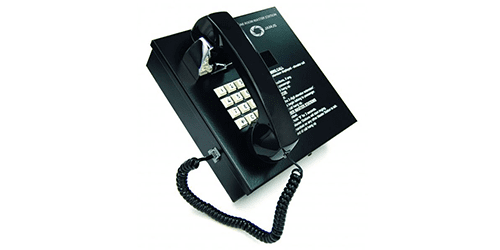

The SHW Master Station Phone provides two way communication between the lobby or fire control room and the elevator phones on an EMS5 System.
Once a call is placed from an elevator phone, the call will be directed to the SHW phone. The digital display will show the number of the elevator calling.

Note: This unit can be wall mounted or placed on a desk using the optional desk stand (Part #: SDK).
SHW-MR Machine Room Master Station
SHW-MR Machine Room Master Station

Key Features:
  • Two 22 awg twisted shielded pair per lobby master station
  • Phones can be up to 2,000 feet away
  • If the call is not answered within a preset amount of time, it will be directed to your choice of pre-programmed numbers
  • On-site answering of calls from phones on the EMS5 unit
  • Multiple master stations can be used on a system
  • A master station combined with the EMS5 system can operate without a phone line where 24 hour on-site monitoring is used
  • Digital display shows origin of call
  • Allows onsite communication between master station and all other devices
  • ASME 2008 (U.S.) and B44 (Canada) code compliant
  • Wall mount, flush mount, desk set, and hands-free options available
  • Available in stainless or muntz finish upon request

  • Dimensions: 9-3/16" W x 9-3/16" H x 5" D
  • Weight: 6 lbs.
  • Power: 110vac to 12vdc @ 500mA power transformer supplied
